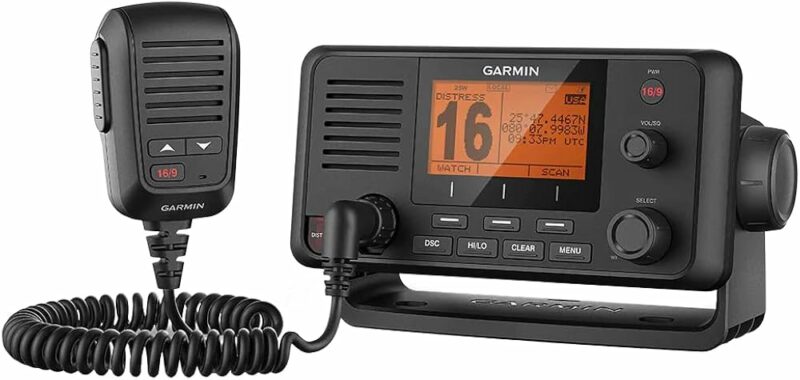

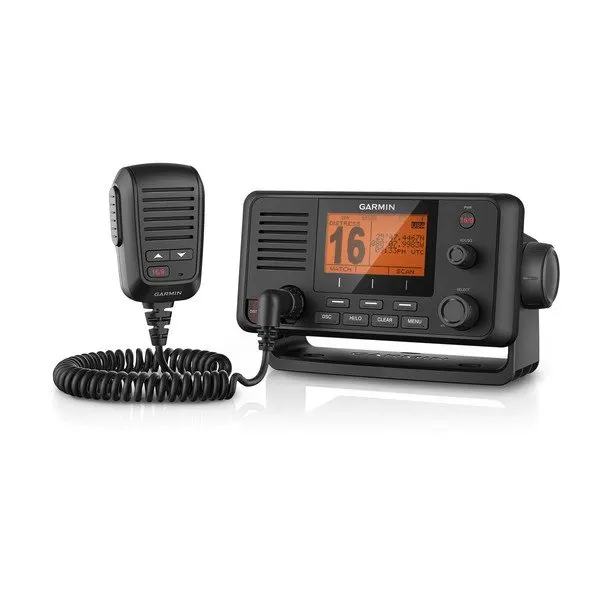

Garmin VHF215 Marine Radio

Model: 010-02097-00

• Built-in digital selective calling (DSC) Class D functionality.
• 25-watt broadcast power with built-in GPS.
• second GHS™ handheldGHS™ 11 second station remote microphone.
• Frequency range includes all U.S., Canadian, international marine channels plus 10 NOAA weather channels.
• Removable handheld hail-out mic and radio unit.
• Easy plug-and-play installation with compatible MFDs via NMEA 2000®.
• In case of emergency, the 25-watt broadcast power of the VHF 215 provides confidence to anglers, sailors and boaters.

Key Features

• Easy to install and use with a large, easy-to-read display.
• DSC supportClass D DSC (Emergency and Direct Calling with user programmed MMSI).
• Includes a frequency range for all U.S., Canadian, and international marine channels plus 10 NOAA weather channels.
• second GHS™ handheldRemovable microphone allows for placement away from the main unit..
• Compatible with
• second GHS™ handheldDesigned to.
• integrate seamlessly with GPSMAP® chartplotters such as the 7x2/9x2, 10x2/12x2, 7400/7600, and 8400/8600.Specifications

: 138mm x 61mm x 38mm (excluding antenna)

• : Height x Width x Depth: 3.9" x 7.8" x 5.8" (9.8 x 19.7 x 14.9 cm).: 350g (including battery).
• Radio only, without mic: 42.8 oz. (1.2 kg).:
  • Mic: 8.8 oz. (0.25 kg).
  • Microphone: 8.8 oz. (0.25 kg).
• Waterproof: IPX7 certified.
• Operating temperature:
  • Operation: -15°C to 70°C (5°F to 158°F).
  • Storage: -20°C to 70°C (-4°F to 158°F).
• Compass safe distance: 29.5" (75 cm).
• NMEA 2000 support: Yes.
• NMEA 0183 support: Yes.
• Compass Safe Distance: 2" (5 cm).
• Frequency range: Includes all U.S., Canadian, international, and 10 NOAA weather channels.
• Operating voltage: 12.0 VDC.
• Current consumption:
  • Standby mode: 350 mA.
  • Receive mode: 600 mA.
  • Transmit mode: 2.0 A - 6.0 A (1 W - 25 W).
• Operating frequency range: 156.050 MHz to 163.275 MHz (including weather channels).
• Loudspeaker output power: 20 W at 4 Ω.
• Loudspeaker impedance: 4 Ω.
• External speaker impedance: 4 Ω.
• Antenna connector: S0-239 (50 Ω).
• Maximum antenna gain: 9 dBi.

What's in the Box:

• VHF 215 Marine Radio.
• NMEA 0183 data cable for loudspeaker.
• Power cable.
• Ring and knob mount.
• Flush mounting gasket.
• On-board mounting screw.
• Microphone mount.
• Protective cap.
• Detachable voice microphone.
• Instruction manual.
