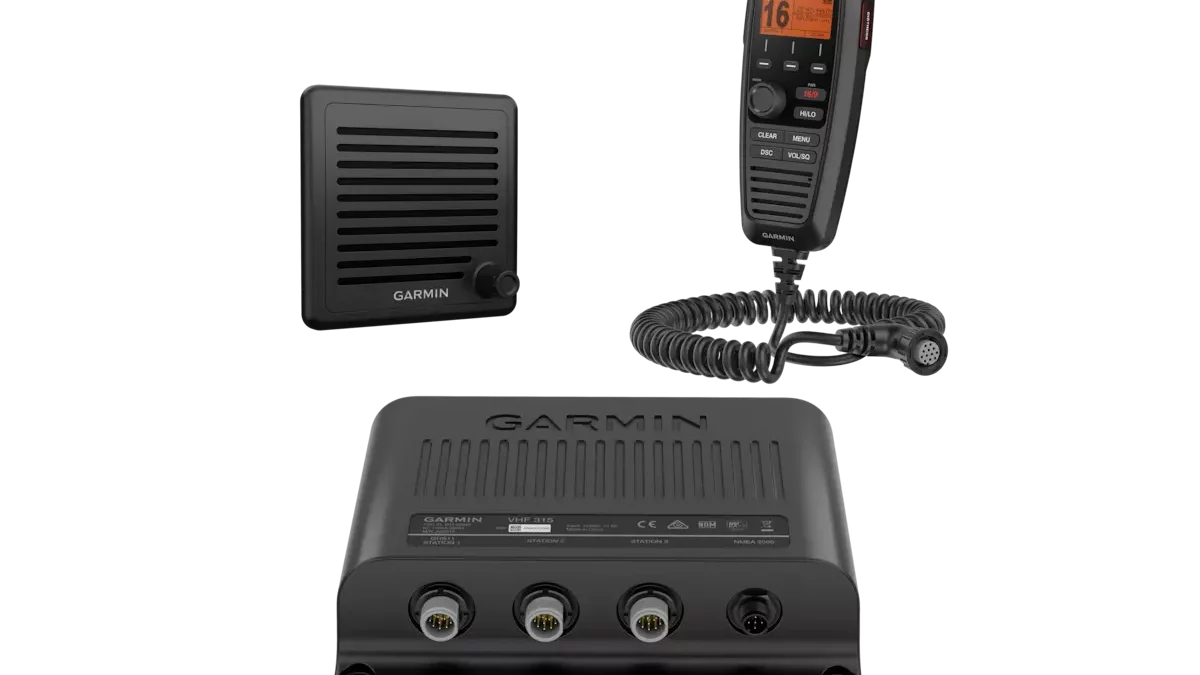

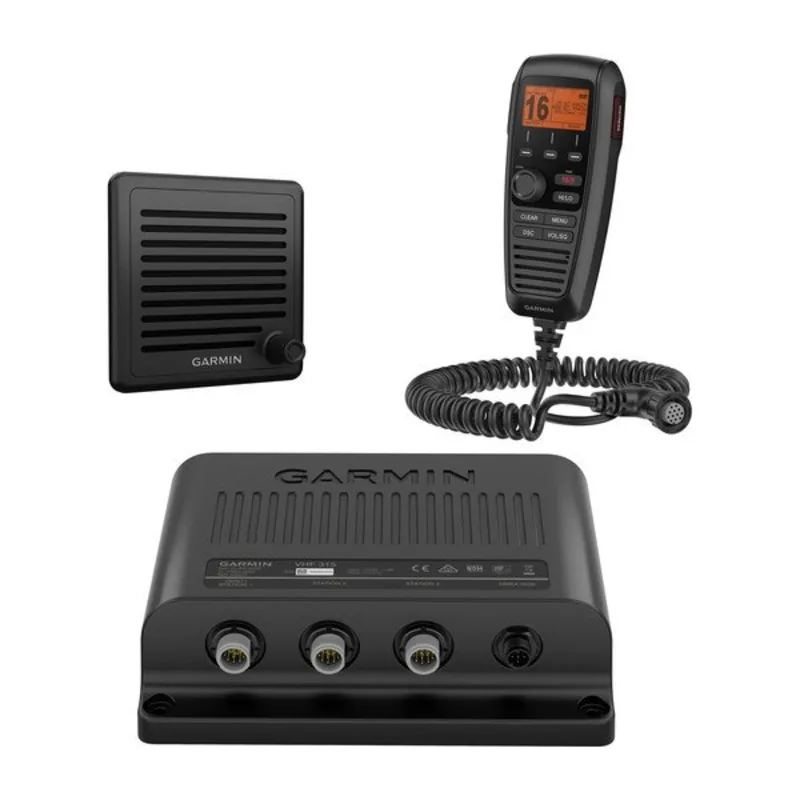

Garmin VHF315 Black VHF Marine Radio

Key Features:

• Reliable 25-watt Class D DSC marine VHF radio.
• Built-in GPS (requires external antenna).
• Includes GHS™ 11 handset and new active speaker, enabling intercom functionality between up to 3 stations.
• NMEA 2000® connectivity, easily integrates with compatible chartplotters and multi-function displays.
• Pre-loaded channels: Supports U.S., Canadian, International marine channels and 10 NOAA weather channels.

Description:

• Built-in GPS with a connection port for an external antenna.
• Comes with GHS 11 handset and new active speaker, allowing it to be used as an intercom system between up to 3 stations.
• Equipped with a 30-watt two-way speaker system for communication with other vessels or crew on deck.
• NMEA 2000 connectivity allows for easy integration with chartplotters and convenient software updates.
• User-friendly interface design makes setup quick and operation easy.

Specifications:

• : 350g (including battery).: 3.4 lbs. (1.53 kg).
• Operating Temperature: -13°F to 131°F (-25°C to 55°C).
• WaterproofWaterproof Rating: IPX7.
• RFI/EMI Immunity: Meets or exceeds FCC Part 15 Class B.
• Compass Safe Distance: Meets or exceeds FCC Part 15 Class B.
• Compass Safe Distance: 2" (5 cm).
• Frequency Range:
  • : All U.S., Canadian, International Marine Channels; 10 NOAA Weather Channels.
  • Transmit Power (at 13.6 Vdc)
• High Power: 23-25 W.Low Power: 0.7-1 W.
• High Power: 23-25 W.: 1.
• Current Consumption:
  • Standby Mode: 350 mA.
  • Receive Mode: 600 mA.
  • Transmit Mode (High Power): 6 A Max.
  • Transmit Mode (Low Power): 2 A Max.
• : 138mm x 61mm x 38mm (excluding antenna): 8.1" x 7.1" x 2.4" (20.5 x 18.1 x 6.0 cm).

Box Contents:

• VHF 315 Marine Handheld Transceiver.
• GHS 11 Handset.
• GHS 11 Mounting Shelf.
• Active Speaker.
• Power Cable.
• Junction Cable (10 meters).
• Mic Mounting Bracket.
• Mounting Hardware.
• Owner's Manual.
