Cobham Explorer 540 BGAN Satellite Terminal

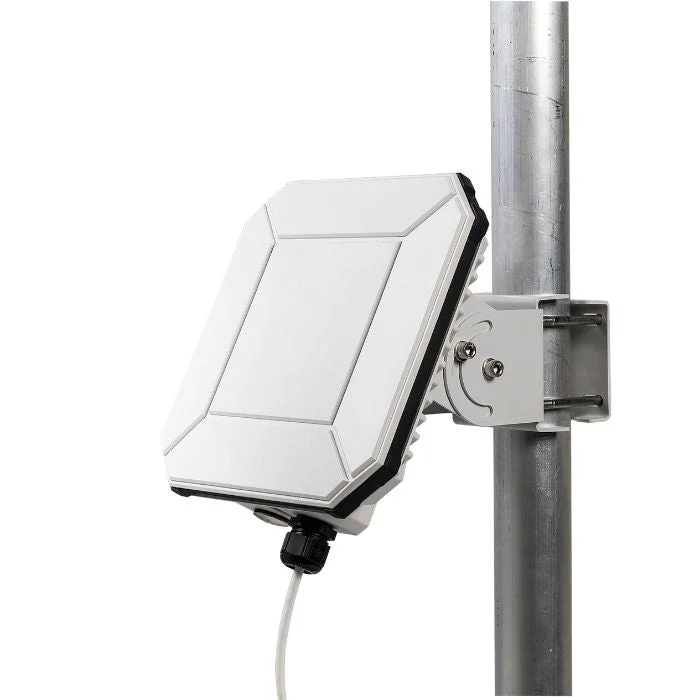

With its dual-mode BGAN and cellular capabilities, the Cobham EXPLORER 540 is the world's first and only Inmarsat device of its kind. It provides critical monitoring and control applications with 'always-on' connectivity, while allowing users to choose the best network provider depending on their location. The EXPLORER 540 can perform well even in the harshest conditions and most remote environments. With its water and dust resistance, the device is IP66 rated with a rugged enclosure and comes with a pole mount bracket for enhanced higher mounting opportunities. Setup is simple and operation is even easier, with remote device management via SMS.
Seamlessly switch between BGAN and cellular networks with the EXPLORER 540. This flexibility is coupled with the provision of reliable global two-way IP data services, making it ideal for organisations seeking M2M solutions such as SCADA, asset tracking or real-time data acquisition.Specifications:
- Transceiver: 4.25 x 24.7 x 27 cm 202 202 51.8 mm (8.0 8.0 2.0 inches)
- Weight: 1.6 kg 3.5 lbs
- Data Capabilities:
- Standard IP: Up to 464 kbps
- IP Streaming: 32, 64, 128 kbps (Not for BGAN M2M)
- Voice Capabilities (Not for BGAN M2M):
- Standard Voice: 4 kbps
- High Quality Voice: 3.1 kHz audio, 64 kbps
- Standard Voice: 4 kbps 15.1 dBW ±1dB
- User Interface: 1 LED (Status), 1 Reset button, Web Interface
- Languages:ENG, FR, DE, ES, RU, JP and CN
- Approval:CE, FCC, IC, C-TICK, C1D2, Inmarsat Class 2 Approved and BGAN M2M Certified
- Connection Interfaces:
- Micro USB (For EXPLORER mobile modems)
- BGAN SIM slot
- RJ45 Ethernet port with PoE
- 8-pin terminal port for Ethernet and PoE
- 3-pin I/O
- 2-pin DC power input
Environmental Conditions:
- Temperature:
- Operating (ambient): -40°C to +55°C / -40°F to +131°F
- Extended operation: > +55°C / +131°F (Power shutdown protection if internal overheating occurs - typically at +75°C / +167°F)
- Storage: -55°C to +80°C / -67°F to +176°F
- Relative Humidity:95% non-condensing at 40°C / +104°F
- Durability:0.5 m / 1.64 ft drop onto concrete (operational, 95% survival rate)
- Water and Dust Proof:IP66
- Hazardous Environment:C1D2 Certified
Power Source:
- DC Input Range:10.5-32 VDC via connector
- PoE Input:PoE+ IEEE 802.3at Type 2 Class 4 via RJ45 connector
- Power Consumption:
- Standby: 1.9W (@ 12VDC), 3.5W (PoE)
- Transmission: 19W (typical)
